HPV-40FS

Full Bore3000 PSI

1/4" ~2"   DN 8~DN50

MoreLiterature

BODY : AISI 316
SEAT : DELRIN
CONNECTION : Threaded End

Design Feature :

API 607 5th / ISO 10497-5 / BS 6755 Part II
1. ANSI B16.34 Class 1500 design
2. Blow-out proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. Threaded End

HPV-40FS

Full Bore3000 PSI

1/4" ~2"   DN 8~DN50

MoreLiterature

BODY : AISI 316
SEAT : PEEK
CONNECTION : Threaded End

Design Feature :

API 607 5th / ISO 10497-5 / BS 6755 Part II
1. ANSI B16.34 Class 1500 design
2. Blow-out proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. Threaded End

HPV-40FSA

Reduced Bore3000 PSI

1/4" ~2"   DN 8~DN50

MoreLiterature

BODY : AISI 316
SEAT : DELRIN
CONNECTION : Threaded End

Design Feature :

API 607 5th / ISO 10497-5 / BS 6755 Part II
1. ANSI B16.34 Class 1500 design
2. Blow-out proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. Threaded End

HPV-40FSA

Reduced Bore3000 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : AISI 316
SEAT : PEEK
CONNECTION : Threaded End

Design Feature :

API 607 5th / ISO 10497-5 / BS 6755 Part II
1. ANSI B16.34 Class 1500 design
2. Blow-out proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. Threaded End

HPV-40FSA

Reduced Bore3000 PSI

1/2" ~2"   DN 8~DN50

MoreLiterature

BODY : AISI 316
SEAT : DELRIN
CONNECTION : Butt Weld End

Design Feature :

API 607 5th / ISO 10497-5 / BS 6755 Part II
1. ANSI B16.34 Class 1500 design
2. Blow-out proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. Butt End

HPV-40FSA

Reduced Bore3000 PSI

1/2" ~2"   DN 8~DN50

MoreLiterature

BODY : AISI 316
SEAT : PEEK
CONNECTION : Butt Weld End

Design Feature :

API 607 5th / ISO 10497-5 / BS 6755 Part II
1. ANSI B16.34 Class 1500 design
2. Blow-out proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. Butt End

HPV-40FSA

Reduced Bore3000 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : AISI 316
SEAT : DELRIN
CONNECTION : Socket Weld End

Design Feature :

API 607 5th / ISO 10497-5 / BS 6755 Part II
1. ANSI B16.34 Class 1500 design
2. Blow-out proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. Socket weld End

HPV-40FSA

Reduced Bore3000 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : AISI 316
SEAT : PEEK
CONNECTION : Socket Weld End

Design Feature :

API 607 5th / ISO 10497-5 / BS 6755 Part II
1. ANSI B16.34 Class 1500 design
2. Blow-out proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. Socket weld End

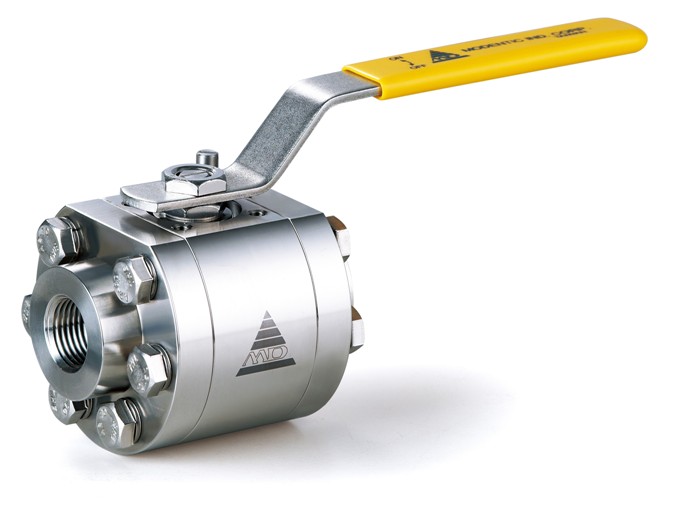

HPV-41FS

Full Bore6000 PSI

1/4" ~2"   DN 8~DN50

MoreLiterature

BODY : AISI 316
SEAT : DELRIN
CONNECTION : Threaded End

Design Feature :

API 607 5th / ISO 10497-5 / BS 6755 Part II
1. ANSI B16.34 Class 2500 design
2. Blow-out proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. Threaded End

HPV-41FS

Full Bore6000 PSI

1/4" ~2"   DN 8~DN50

MoreLiterature

BODY : AISI 316
SEAT : PEEK
CONNECTION : Threaded End

Design Feature :

API 607 5th / ISO 10497-5 / BS 6755 Part II
1. ANSI B16.34 Class 2500 design
2. Blow-out proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. Threaded End

HPV-41FSA

Reduced Bore6000 PSI

1/4" ~2"   DN 8~DN50

MoreLiterature

BODY : AISI 316
SEAT : DELRIN
CONNECTION : Threaded End

Design Feature :

API 607 5th / ISO 10497-5 / BS 6755 Part II
1. ANSI B16.34 Class 2500 design
2. Blow-out proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. Threaded End

HPV-41FSA

Reduced Bore6000 PSI

1/4" ~2"   DN 8~DN50

MoreLiterature

BODY : AISI 316
SEAT : PEEK
CONNECTION : Threaded End

Design Feature :

API 607 5th / ISO 10497-5 / BS 6755 Part II
1. ANSI B16.34 Class 2500 design
2. Blow-out proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. Threaded End

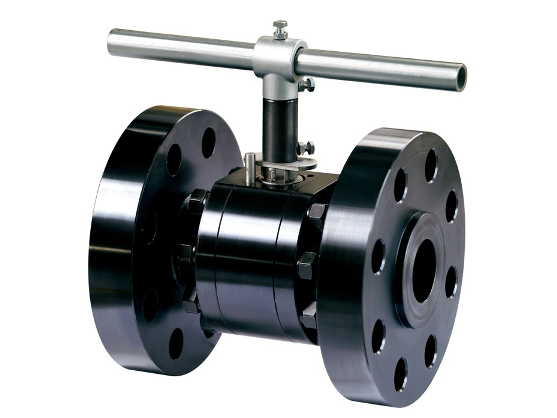

HPV-43FS

Full BoreCLASS 1500

1/2" ~2"   DN15~DN50

MoreLiterature

BODY : AISI 316
SEAT : PTFE
CONNECTION : Flanged End

Design Feature :

API 607 5th / ISO 10497-5 / BS 6755 Part II
1. Blow-out proof stem
2. Anti-static design
3. ISO 5211 mounting flange
4. ANSI B16.10 Class 1500
5. ANSI B16.5 Class 1500 RTJ

HPV-43FS

Full BoreCLASS 2500

1/2" ~2"   DN15~DN50

MoreLiterature

BODY : AISI 316
SEAT : PTFE
CONNECTION : Flanged End

Design Feature :

API 607 5th / ISO 10497-5 / BS 6755 Part II
1. Blow-out proof stem
2. Anti-static design
3. ISO 5211 mounting flange
4. ANSI B16.10 Class 2500
5. ANSI B16.5 Class 2500 RTJ

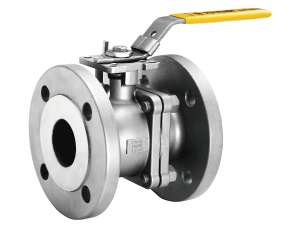

MD-28FS

Full BoreCLASS 150

1/2" ~6"   DN15~DN150

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497
1. FIRE SAFE APPROVED
2. Blow-out-proof stem design
3. Anti-static design
4. ISO 5211 Direct mounting
5. ANSI B16.10 Class 150
6. ANSI B16.5 Class 150 RF

MD-28FS

Full BoreCLASS 300

1/2" ~6"   DN15~DN150

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497
1. FIRE SAFE APPROVED
2. Blow-out-proof stem design
3. Anti-static design
4. ISO 5211 Direct mounting
5. ANSI B16.10 Class 300
6. ANSI B16.5 Class 300 RF

MD-28FS

Full BoreCLASS 150

1/2" ~6"   DN15~DN150

MoreLiterature

BODY : ASTM A216 Gr.WCB
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497
1. FIRE SAFE APPROVED
2. Blow-out-proof stem design
3. Anti-static design
4. ISO 5211 Direct mounting
5. ANSI B16.10 Class 150
6. ANSI B16.5 Class 150 RF

MD-28FS

Full BoreCLASS 300

1/2" ~6"   DN15~DN150

MoreLiterature

BODY : ASTM A216 Gr.WCB
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497
1. FIRE SAFE APPROVED
2. Blow-out-proof stem design
3. Anti-static design
4. ISO 5211 Direct mounting
5. ANSI B16.10 Class 300
6. ANSI B16.5 Class 300 RF

MD-28FS

Full BorePN 16

1/2" ~4"   DN15~DN100

MoreLiterature

BODY : 1.4408 / EN1503-1
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497
1. FIRE SAFE APPROVED
2. ISO 17292 and API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. Blow-out-proof stem design
4. Anti-static design
5. ISO 5211 mounting flange
6. DIN 3202 F1/F4/F5
7. EN 1092-1 PN 10/16/25/40 RF

MD-28FS

Full BorePN 40

1/2" ~6"   DN15~DN150

MoreLiterature

BODY : 1.4408 / EN1503-1
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497
1. FIRE SAFE APPROVED
2. ISO 17292 and API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. Blow-out-proof stem design
4. Anti-static design
5. ISO 5211 mounting flange
6. DIN 3202 F1/F4/F5
7. EN 1092-1 PN 10/16/25/40 RF

MD-28FS

Full BorePN 16

1/2" ~4"   DN15~DN100

MoreLiterature

BODY : 1.0619 / EN1503-1
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497
1. FIRE SAFE APPROVED
2. ISO 17292 and API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. Blow-out-proof stem design
4. Anti-static design
5. ISO 5211 mounting flange
6. DIN 3202 F1/F4/F5
7. EN 1092-1 PN 10/16/25/40 RF

MD-28FS

Full BorePN 40

1/2" ~6"   DN15~DN150

MoreLiterature

BODY : 1.0619 / EN1503-1
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497
1. FIRE SAFE APPROVED
2. ISO 17292 and API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. Blow-out-proof stem design
4. Anti-static design
5. ISO 5211 mounting flange
6. DIN 3202 F1/F4/F5
7. EN 1092-1 PN 10/16/25/40 RF

MD-32

Full BoreCLASS 150

1/2" ~6"   DN15~DN150

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497
1. FIRE SAFE APPROVED
2. API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. Blow-out-proof stem design
4. Anti-static design
5. ISO 5211 mounting flange
6. ANSI B16.10 Class 150
7. ANSI B16.5 Class 150 RF

MD-32

Full BoreCLASS 300

1/2" ~6"   DN15~DN150

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497
1. FIRE SAFE APPROVED
2. API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. Blow-out-proof stem design
4. Anti-static design
5. ISO 5211 mounting flange
6. ANSI B16.10 Class 300
7. ANSI B16.5 Class 300 RF

MD-32

Full BorePN 16

1/2" ~8"   DN15~DN200

MoreLiterature

BODY : 1.4408 / EN1503-1
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497
1. FIRE SAFE APPROVED
2. API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. Blow-out-proof stem design
4. Anti-static design
5. ISO 5211 mounting flange
6. DIN 3202 F4/F5
7. EN 1092-1 PN 10/16/25/40 RF

MD-32

Full BorePN 40

1/2" ~8"   DN15~DN200

MoreLiterature

BODY : 1.4408 / EN1503-1
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497
1. FIRE SAFE APPROVED
2. API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. Blow-out-proof stem design
4. Anti-static design
5. ISO 5211 mounting flange
6. DIN 3202 F4/F5
7. EN 1092-1 PN 10/16/25/40 RF

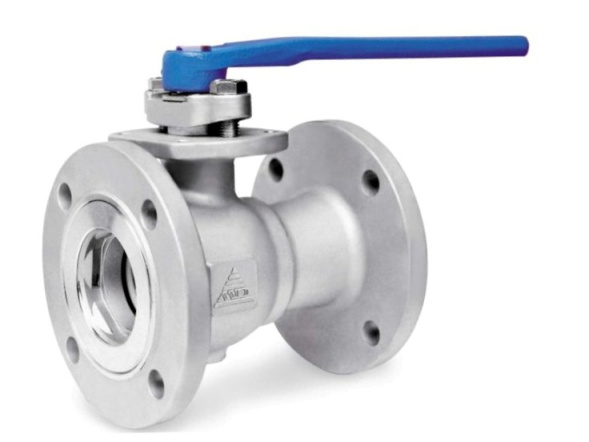

MD-51FS

Reduced BoreCLASS 300

3/4" ~6"   DN20~DN150

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE / PTFE with 15% G.F.
CONNECTION : Flanged End

Design Feature :

API 607 4th
1. Reduced Bore
2. Blow-out-proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. ANSI B16.10 Class 300
6.ANSI B16.5 Class 300 RF

MD-51FS

Reduced BoreCLASS 150

1/2" ~6"   DN15~DN150

MoreLiterature

BODY : ASTM A216 Gr.WCB
SEAT : RTFE / PTFE with 15% G.F.
CONNECTION : Flanged End

Design Feature :

API 607 4th
1. Reduced Bore
2. Blow-out-proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. ANSI B16.10 Class 150
6.ANSI B16.5 Class 150 RF

MD-51FS

Reduced BoreCLASS 150

1/2" ~6"   DN15~DN150

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE / PTFE with 15% G.F.
CONNECTION : Flanged End

Design Feature :

API 607 4th
1. Reduced Bore
2. Blow-out-proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. ANSI B16.10 Class 150
6.ANSI B16.5 Class 150 RF

MD-51FS

Reduced BoreCLASS 300

3/4" ~6"   DN20~DN150

MoreLiterature

BODY : ASTM A216 Gr.WCB
SEAT : RTFE / PTFE with 15% G.F.
CONNECTION : Flanged End

Design Feature :

API 607 4th
1. Reduced Bore
2. Blow-out-proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. ANSI B16.10 Class 300
6.ANSI B16.5 Class 300 RF

MD-52FS

Full BoreCLASS 300

1/2" ~6"   DN15~DN150

MoreLiterature

BODY : ASTM A216 Gr.WCB
SEAT : RTFE / PTFE with 15% G.F.
CONNECTION : Flanged End

Design Feature :

API 607 4th
1. Full Bore
2. Blow-out-proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. ANSI B16.10 Class 300
6.ANSI B16.5 Class 300 RF

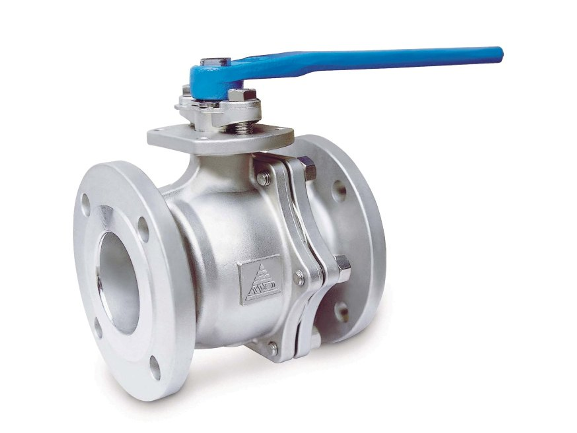

MD-52FS

Full BoreCLASS 150

1/2" ~6"   DN15~DN150

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE / PTFE with 15% G.F.
CONNECTION : Flanged End

Design Feature :

API 607 4th
FIRE SAFE APPROVED
1. Full Bore
2. Blow-out-proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. ANSI B16.10 Class 150
6.ANSI B16.5 Class 150 RF

MD-52FS

Full BoreCLASS 150

1/2" ~6"   DN15~DN150

MoreLiterature

BODY : ASTM A216 Gr.WCB
SEAT : RTFE / PTFE with 15% G.F.
CONNECTION : Flanged End

Design Feature :

API 607 4th
1. Full Bore
2. Blow-out-proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. ANSI B16.10 Class 150
6.ANSI B16.5 Class 150 RF

MD-52FS

Full BoreCLASS 300

1/2" ~6"   DN15~DN150

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE / PTFE with 15% G.F.
CONNECTION : Flanged End

Design Feature :

API 607 4th
1. Full Bore
2. Blow-out-proof stem
3. Anti-static design
4. ISO 5211 mounting flange
5. ANSI B16.10 Class 300
6.ANSI B16.5 Class 300 RF

MD-82

Full BoreCLASS 150

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. Fire Safe Approved
2. ISO 17292 and API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air
4. Blow-out-proof stem design
5. Anti-static design
6. ISO 5211 mounting flange
7. ANSI B16.10 Class 150
8. ANSI B16.5 Class 150 RF

MD-82

Full BoreCLASS 300

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. Fire Safe Approved
2. ISO 17292 and API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air
4. Blow-out-proof stem design
5. Anti-static design
6. ISO 5211 mounting flange
7. ANSI B16.10 Class 300
8. ANSI B16.5 Class 300 RF

MD-82

Full BorePN 16

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : 1.4408 / EN1503-1
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. FIRE SAFE APPROVED
2. ISO 17292 and API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. Blow-out-proof stem design
4. Anti-static design
5. ISO 5211 mounting flange
6. DIN 3202 F1/F4/F5
7. EN 1092-1 PN 10/16/25/40 RF
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BorePN 40

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : 1.4408 / EN1503-1
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. FIRE SAFE APPROVED
2. ISO 17292 and API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. Blow-out-proof stem design
4. Anti-static design
5. ISO 5211 mounting flange
6. DIN 3202 F1/F4/F5
7. EN 1092-1 PN 10/16/25/40 RF
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BoreCLASS 150

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A216 Gr.WCB
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. Fire Safe Approved
2. ISO 17292 and API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air
4. Blow-out-proof stem design
5. Anti-static design
6. ISO 5211 mounting flange
7. ANSI B16.10 Class 150
8. ANSI B16.5 Class 150 RF

MD-82

Full BoreCLASS 300

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A216 Gr.WCB
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. Fire Safe Approved
2. ISO 17292 and API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air
4. Blow-out-proof stem design
5. Anti-static design
6. ISO 5211 mounting flange
7. ANSI B16.10 Class 300
8. ANSI B16.5 Class 300 RF

MD-82

Full BorePN 16

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : 1.0619 / EN1503-1
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. FIRE SAFE APPROVED
2. ISO 17292 and API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. Blow-out-proof stem design
4. Anti-static design
5. ISO 5211 mounting flange
6. DIN 3202 F1/F4/F5
7. EN 1092-1 PN 10/16/25/40 RF
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BorePN 40

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : 1.0619 / EN1503-1
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. FIRE SAFE APPROVED
2. ISO 17292 and API 608 fully compliance to serve petroleum, petrochemical and allied industries
3. Blow-out-proof stem design
4. Anti-static design
5. ISO 5211 mounting flange
6. DIN 3202 F1/F4/F5
7. EN 1092-1 PN 10/16/25/40 RF
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BoreCLASS 150

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A351 Gr.CN7M
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. ANSI B16.34 Class 150 RF
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BoreCLASS 300

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A351 Gr.CN7M
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. ANSI B16.34 Class 300 RF
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BorePN 40 / PN 16

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A351 Gr.CN7M
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. PN40 RF for below 2"
PN16 RF for above 2-1/2"
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BoreCLASS 150

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A890/995 Gr.4A CD3MN
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. ANSI B16.34 Class 150 RF
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BoreCLASS 300

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A890/995 Gr.4A CD3MN
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. ANSI B16.34 Class 300 RF
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BorePN 40 / PN 16

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A890/995 Gr.4A CD3MN
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. PN40 RF for below 2"
PN16 RF for above 2-1/2"
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BoreCLASS 150

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A890/995 Gr.5A CE3MN
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. ANSI B16.34 Class 150 RF
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BoreCLASS 300

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A890/995 Gr.5A CE3MN
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. ANSI B16.34 Class 300 RF
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BorePN 40 / PN 16

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A890/995 Gr.5A CE3MN
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. PN40 RF for below 2"
PN16 RF for above 2-1/2"
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BoreCLASS 150

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A494 Gr.CW12MW
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. ANSI B16.34 Class 150 RF
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BoreCLASS 300

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A494 Gr.CW12MW
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. ANSI B16.34 Class 300 RF
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BorePN 40 / PN 16

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A494 Gr.CW12MW
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. PN40 RF for below 2"
PN16 RF for above 2-1/2"
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BoreCLASS 150

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A494 Gr.M-35-1
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. ANSI B16.34 Class 150 RF
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BoreCLASS 300

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A494 Gr.M-35-1
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. ANSI B16.34 Class 300 RF
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BorePN 40 / PN 16

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : ASTM A494 Gr.M-35-1
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. PN40 RF for below 2"
PN16 RF for above 2-1/2"
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

MD-82

Full BoreCLASS 150

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : SS904L (Casting)
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. ANSI B16.34 Class 150 RF
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device

MD-82

Full BoreCLASS 300

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : SS904L (Casting)
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. ANSI B16.34 Class 300 RF
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device

MD-82

Full BorePN 40 / PN 16

1/2" ~12"   DN15~DN300

MoreLiterature

BODY : SS904L (Casting)
SEAT : RTFE
CONNECTION : Flanged End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
(API 607 fire safe upon request)
2. Full Bore
3. PN40 RF for below 2"
PN16 RF for above 2-1/2"
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device

V-166FS

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : PTFE
CONNECTION : Threaded End

Design Feature :

API 607 6th / ISO 10497
1. ANSI B16.34 Class 900 design
2. Blow-out-proof stem design
3. Anti-static design
4. Seal Welding Design
5. Handle with locking device
6. THREADED END
7. M3 LENGTH

V-166FS

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : PTFE
CONNECTION : Socket Weld End

Design Feature :

API 607 6th / ISO 10497
1. ANSI B16.34 Class 900 design
2. Blow-out-proof stem design
3. Anti-static design
4. Seal Welding Design
5. Handle with locking device
6. SOCKET WELD END
7. M3 LENGTH

V-166FS

Full BorePN140 / PN100

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : 1.4408 / EN1503-1
SEAT : PTFE
CONNECTION : Threaded End

Design Feature :

API 607 6th / ISO 10497
1. ANSI B16.34 Class 900 design
2. Blow-out-proof stem design
3. Anti-static design
4. Seal Welding Design
5. Handle with locking device
6. THREADED END
7. M3 LENGTH

V-166FS

Full BorePN140 / PN100

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : 1.4408 / EN1503-1
SEAT : PTFE
CONNECTION : Socket Weld End

Design Feature :

API 607 6th / ISO 10497
1. ANSI B16.34 Class 900 design
2. Blow-out-proof stem design
3. Anti-static design
4. Seal Welding Design
5. Handle with locking device
6. SOCKET WELD END
7. M3 LENGTH

V-255FS

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50
Bolt inside

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE
CONNECTION : Threaded End

Design Feature :

API 607 Fire Safe 6th Edition
1. Full Bore
2. ANSI B16.34 class 600 design
3. Blow-out proof stem
4. Anti-static design
5. ISO 5211 mounting flange
6. Handle with locking device
7. API 608 design
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FS

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50
Bolt inside

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE
CONNECTION : Socket Weld End

Design Feature :

API 607 Fire Safe 6th Edition
1. Full Bore
2. ANSI B16.34 class 600 design
3. Blow-out proof stem
4. Anti-static design
5. ISO 5211 mounting flange
6. Handle with locking device
7. API 608 design
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FS

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50
Bolt inside

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE
CONNECTION : Butt Weld End

Design Feature :

API 607 Fire Safe 6th Edition
1. Full Bore
2. ANSI B16.34 class 600 design
3. Blow-out proof stem
4. Anti-static design
5. ISO 5211 mounting flange
6. Handle with locking device
7. API 608 design
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FSA

Reduced Bore2000 PSI / 1500 PSI

1/2" ~2-1/2"   DN15~DN65

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE
CONNECTION : Threaded End

Design Feature :

1. API 607 Fire Safe 6th Edition
2. ANSI B16.34 class 600 design
3. Blow-out proof stem
4. Anti-static design
5. ISO 5211 mounting flange
6. Handle with locking device
7. API 608 design
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FSA

Reduced Bore2000 PSI / 1500 PSI

1/2" ~2-1/2"   DN15~DN65

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE
CONNECTION : Socket Weld End

Design Feature :

1. API 607 Fire Safe 6th Edition
2. ANSI B16.34 class 600 design
3. Blow-out proof stem
4. Anti-static design
5. ISO 5211 mounting flange
6. Handle with locking device
7. API 608 design
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FSA

Reduced Bore2000 PSI / 1500 PSI

1/2" ~2-1/2"   DN15~DN65

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : RTFE
CONNECTION : Butt Weld End

Design Feature :

1. API 607 Fire Safe 6th Edition
2. ANSI B16.34 class 600 design
3. Blow-out proof stem
4. Anti-static design
5. ISO 5211 mounting flange
6. Handle with locking device
7. API 608 design
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FSB

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A351 Gr.CN7M
SEAT : RTFE
CONNECTION : Butt Weld End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FSB

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A890/995 Gr.4A CD3MN
SEAT : RTFE
CONNECTION : Butt Weld End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FSB

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A890/995 Gr.5A CE3MN
SEAT : RTFE
CONNECTION : Butt Weld End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FSB

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A494 Gr.CW12MW
SEAT : RTFE
CONNECTION : Butt Weld End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FSB

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A494 Gr.M-35-1
SEAT : RTFE
CONNECTION : Butt Weld End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FSB

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : SS904L (Casting)
SEAT : RTFE
CONNECTION : Butt Weld End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device

V-255FSS

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A494 Gr.M-35-1
SEAT : RTFE
CONNECTION : Socket Weld End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FSS

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : SS904L (Casting)
SEAT : RTFE
CONNECTION : Socket Weld End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device

V-255FSS

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A890/995 Gr.5A CE3MN
SEAT : RTFE
CONNECTION : Socket Weld End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FSS

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A494 Gr.CW12MW
SEAT : RTFE
CONNECTION : Socket Weld End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FSS

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A351 Gr.CN7M
SEAT : RTFE
CONNECTION : Socket Weld End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FSS

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A890/995 Gr.4A CD3MN
SEAT : RTFE
CONNECTION : Socket Weld End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FST

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A890/995 Gr.5A CE3MN
SEAT : RTFE
CONNECTION : Threaded End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FST

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A494 Gr.CW12MW
SEAT : RTFE
CONNECTION : Threaded End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FST

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A890/995 Gr.4A CD3MN
SEAT : RTFE
CONNECTION : Threaded End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FST

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A351 Gr.CN7M
SEAT : RTFE
CONNECTION : Threaded End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-255FST

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : SS904L (Casting)
SEAT : RTFE
CONNECTION : Threaded End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device

V-255FST

Full Bore2000 PSI / 1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A494 Gr.M-35-1
SEAT : RTFE
CONNECTION : Threaded End

Design Feature :

Super Alloy Ball Valve
1. Stock items: Not fire safe design
*API 607 fire safe upon request*
2. Full Bore
3. ANSI B16.34 Class 600 design
4. Blow-out proof stem
5. Non anti-static device
6. ISO 5211 mounting flange
7. Handle with locking device
8. ABS PDA Certified for Marine, Offshore Platform and Industrial Applications - Water, Oil and Air

V-755FS

Full Bore1500 PSI

1/2" ~2"   DN15~DN50

MoreLiterature

BODY : ASTM A105/F316
SEAT : RTFE with 15% G.F.
CONNECTION : Threaded End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. ANSI B16.34 Class 600 design
2. Blow-out-proof stem design
3. Anti-static design
4. ISO 5211 mounting flange
5. Forged Steel components
6. Handle with locking device
7. Threaded End

V-755FS

Full Bore1500 PSI

1/2" ~2"   DN15~DN50

MoreLiterature

BODY : ASTM A105/F316
SEAT : RTFE with 15% G.F.
CONNECTION : Socket Weld End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. ANSI B16.34 Class 600 design
2. Blow-out-proof stem design
3. Anti-static design
4. ISO 5211 mounting flange
5. Forged Steel components
6. Handle with locking device
7. Socket weld End

V-755FS

Full Bore1500 PSI

1/2" ~2"   DN15~DN50

MoreLiterature

BODY : ASTM A105/F316
SEAT : RTFE with 15% G.F.
CONNECTION : Butt Weld End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. ANSI B16.34 Class 600 design
2. Blow-out-proof stem design
3. Anti-static design
4. ISO 5211 mounting flange
5. Forged Steel components
6. Handle with locking device
7. Butt End

V-755FSA

Reduced Bore1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A105/F316
SEAT : RTFE with 15% G.F.
CONNECTION : Threaded End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. ANSI B16.34 Class 600 design
2. Blow-out-proof stem design
3. Anti-static design
4. ISO 5211 mounting flange
5. Forged Steel components
6. Handle with locking device
7. Threaded End

V-755FSA

Reduced Bore1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A105/F316
SEAT : RTFE with 15% G.F.
CONNECTION : Socket Weld End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. ANSI B16.34 Class 600 design
2. Blow-out-proof stem design
3. Anti-static design
4. ISO 5211 mounting flange
5. Forged Steel components
6. Handle with locking device
7. Socket weld End

V-755FSA

Reduced Bore1500 PSI

1/4" ~2"   DN8~DN50

MoreLiterature

BODY : ASTM A105/F316
SEAT : RTFE with 15% G.F.
CONNECTION : Butt Weld End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. ANSI B16.34 Class 600 design
2. Blow-out-proof stem design
3. Anti-static design
4. ISO 5211 mounting flange
5. Forged Steel components
6. Handle with locking device
7. Butt End

V-908

Full Bore2000 PSI

1/4" ~3"   DN8~DN80

MoreLiterature

BODY : ASTM A351 Gr.CF8M
SEAT : PTFE
CONNECTION : Threaded End

Design Feature :

API 607 6th / ISO 10497 / BS 6755 Part II
1. ANSI B16.34 Class 900 design
2. Blow-out-proof stem design
3. Anti-static design
4. ISO 5211 Direct mounting
5. Handle with locking device
6. Seal Welding Design
7. End Connection: Threaded
