Model Name

Ball Valve

V-255EB

Tube BorePN100 / PN 63

1/2" ~2"    DN15~DN50
Bolt Inside

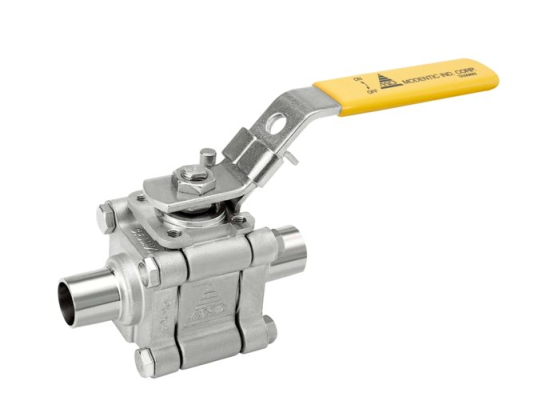

 Product Picture


 Features

Three Pieces High Purity Ball Valves

1. BPE DIMENSIONS
2. TUBE BORE
3. CAVITY FILLED SEAT UPON REQUEST
4. PURGE PORT UPON REQUEST
5. EXTENSION STEM UPON REQUEST
5. BLOW-OUT-PROOF STEM
6. TWO POSITION LOCKING DEVICE



 Notifications
Dimensions
Please refer to the Dimensions section.
　
Measurement Units
1. All lengths are measured in millimeter and inch.
2. All weights are measured in kilograms and pounds
　
About Product
1. Shipping and Tax are not included in pricing.
2. All products supplied by Modentic are under products liability insurance.
3. Valvebus.com reserves the rights to change any details without prior notice.
　
About VALVEBUS　
VALVEBUS.com reserves the right to change any details without prior notice.
　
Back to Top

 Specifications
MODEL
PRODUCT TYPE
OPERATION
PRESSURE
CONNECTION
PORT
MOUNTING
Mounting Flange
BODY
Material
CAP / BONNET
Material
STEM
Material
BALL
Material
SEAT
Material
CHOICE OF SEATS
Material
BODY SEAL
Material
THRUST WASHER
Material
STEM PACKING
Material
V-255EB
STANDARD COMPLIANCE
• EN12516-1 / 2, B16.34 / BPE
• Port polished per SV1


TEMPERATURE RANGE
• -70 to 356° F
• -57 to 180°C


PRESSURE RATING
• 100 BAR for DN15-DN25
• 63 BAR for DN32 and above


OPTIONS
• Cavity filler seat
• Inter finish polished to
   electropolished SV4
• Anti-static grounding service
• Purge port
• Extension stem.
　
Tube End
• ASME BPE compliant extended tube so that welding can be performed without valve disassembled, tangent lengths furnished to standard ASME/BPE table DT-4.0

• Sulfur content on tube ends 0.005%~0.017 wt. % to ensure consistent weldability. Chemical composition for automatic weld end furnished to ASME/BPE-part DT-3.
　

 Dimension + Weight
SIZE
NPS		 E
mm		 H
mm		 L
mm		 WEIGHT
kgs

SIZE
Inch		 E
Inch		 H
Inch		 L
Inch		 WEIGHT
lbs
