Model Name

Ball Valve

V-Z05EB

Tube BorePN 63 / PN 40

1/2" ~4"    DN15~DN100



 Product Picture


 Features

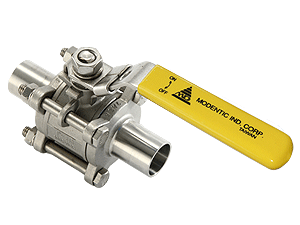

Three Pieces Sanitary Ball Valves

1. TUBE END
2. TUBE BORE
3. INVESTMENT CASTING BODY
4. BLOW-OUT-PROOF STEM DESIGN
5. IN-LINE MAINTENANCE
6. FOR HYGENIC APPLICATION
7. OPTION : LOCKING DEVICE, CAVITY FILLER SEAT



 Notifications
Dimensions
Please refer to the Dimensions section.
　
Measurement Units
1. All lengths are measured in millimeter and inch.
2. All weights are measured in kilograms and pounds
　
About Product
1. Shipping and Tax are not included in pricing.
2. All products supplied by Modentic are under products liability insurance.
3. Valvebus.com reserves the rights to change any details without prior notice.
　
About VALVEBUS　
VALVEBUS.com reserves the right to change any details without prior notice.
　
Back to Top

 Specifications
MODEL
PRODUCT TYPE
OPERATION
PRESSURE
CONNECTION
PORT
BODY
Material
CAP / BONNET
Material
STEM
Material
BALL
Material
SEAT
Material
BODY SEAL
Material
THRUST WASHER
Material
STEM PACKING
Material
TUBE END
• ASME BPE compliant extended tube so that welding can be performed without valve disassembled, tangent lengths furnished to standard ASME/BPE table DT-4.0

• Sulfur content on tube ends 0.005%~0.017 wt. % to ensure consistent weldability. Chemical composition for automatic weld end furnished to ASME/BPE-part DT-3.
　
V-Z05EB
STANDARD COMPLIANCE
• ASTM B16.34
• Tube End: 3A
• EN 12266 / API598

TEMPERATURE RANGE
• -20° to 160°C

OPTION
• Non cavity filler seat
• Extended Tube end
　
Tube End
• ASME BPE compliant extended tube so that welding can be performed without valve disassembled, tangent lengths furnished to standard ASME/BPE table DT-4.0

• Sulfur content on tube ends 0.005%~0.017 wt. % to ensure consistent weldability. Chemical composition for automatic weld end furnished to ASME/BPE-part DT-3.
　

 Dimension + Weight
SIZE
NPS		 E
mm		 H
mm		 L
mm		 WEIGHT
kgs

SIZE
Inch		 E
Inch		 H
Inch		 L
Inch		 WEIGHT
lbs
