Model
Name
Ball Valve
V-010H
Reduced BorePN 40
1/4" ~2" DN8~DN50

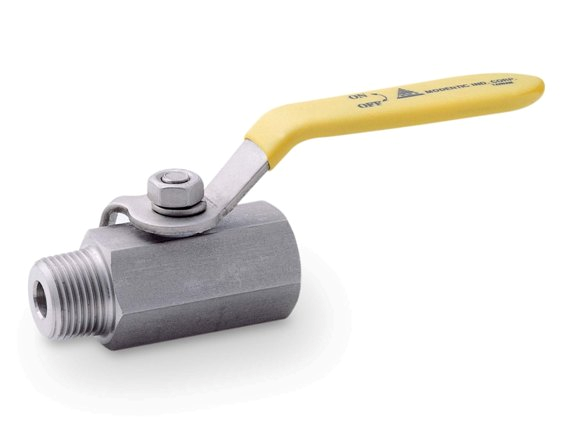

Product Picture
FeaturesGeneral Purpose One Piece Ball Valves |
|---|
1. ONE PIECE HEX. BODY DESIGN |
Notifications| Dimensions |
| Please refer to the Dimensions section. |
 |
| Measurement Units |
| 1. All lengths are measured in millimeter and inch. 2. All weights are measured in kilograms and pounds |
| About Product |
| 1. Shipping and Tax are not included in pricing. 2. All products supplied by Modentic are under products liability insurance. 3. Valvebus.com reserves the rights to change any details without prior notice. |
| About VALVEBUS |
| VALVEBUS.com reserves the right to change any details without prior notice. |
| Back to Top |
 |
Specifications| MODEL | V-010H |
| PRODUCT TYPE | General Purpose One Piece Ball Valves |
| OPERATION | Handle |
| PRESSURE | PN 40 |
| CONNECTION | Threaded End, Male x Female |
| PORT | Reduced Bore |
| BODY Material | 1.4408 / EN1503-1 |
| CAP / BONNET Material | 1.4408 / EN1503-1 |
| STEM Material | SS316 |
| BALL Material | ASTM A351 Gr.CF8M |
| SEAT Material | PTFE |
| BODY SEAL Material | PTFE |
| THRUST WASHER Material | PTFE |
| STEM PACKING Material | PTFE |
| V-010H |
| STANDARD COMPLIANCE • EN 12516-1/3 , BS 21(BSP) • BSPT, ISO 228-1 • DIN 2999, ISO 7-1Rp TEMPERATURE RANGE • -4 to 356 °F • -20 to 180 °C OPTION Carbon Steel & Super Alloy upon Request |
Dimension + Weight| SIZE NPS |
E mm |
H mm |
L mm |
WEIGHT kgs |
| DN8 | 70.0 | 27.0 | 46.0 | 0.072 |
| DN10 | 81.5 | 28.5 | 51.0 | 0.124 |
| DN15 | 97.0 | 44.5 | 59.0 | 0.195 |
| DN20 | 97.0 | 46.0 | 62.5 | 0.300 |
| DN25 | 101.0 | 51.0 | 76.6 | 0.520 |
| DN32 | - | - | - | - |
| DN40 | - | - | - | - |
| DN50 | - | - | - | - |
| SIZE Inch |
E Inch |
H Inch |
L Inch |
WEIGHT lbs |
| 1/4" | 2.8 | 1.1 | 1.8 | 0.2 |
| 3/8" | 3.2 | 1.1 | 2.0 | 0.3 |
| 1/2" | 3.8 | 1.8 | 2.3 | 0.4 |
| 3/4" | 3.8 | 1.8 | 2.5 | 0.7 |
| 1" | 4.0 | 2.0 | 3.0 | 1.1 |
| 1-1/4" | - | - | - | - |
| 1-1/2" | - | - | - | - |
| 2" | - | - | - | - |
