Model Name

Ball Valve

K-324TC

Tube Bore1000 PSI / 800 PSI

1/2" ~4"    DN15~DN100

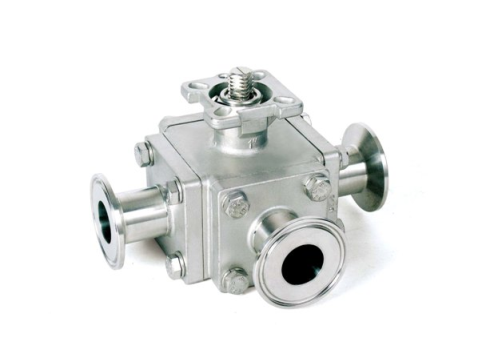

 Product Picture


 Features

Three Ways L / T Port Sanitary Ball Valves

1. T-CLAMP END
2. TUBE BORE
3. THREE WAYS / FOUR WAYS
4. ISO 5211 DIRECT MOUNTING PAD
5.OPTION : CAVITY FILLER SEAT



 Notifications
Dimensions
Please refer to the Dimensions section.
　
Measurement Units
1. All lengths are measured in millimeter and inch.
2. All weights are measured in kilograms and pounds
　
About Product
1. Shipping and Tax are not included in pricing.
2. All products supplied by Modentic are under products liability insurance.
3. Valvebus.com reserves the rights to change any details without prior notice.
　
About VALVEBUS　
VALVEBUS.com reserves the right to change any details without prior notice.
　
Back to Top

 Specifications
MODEL
PRODUCT TYPE
OPERATION
PRESSURE
CONNECTION
PORT
BODY
Material
CAP / BONNET
Material
STEM
Material
BALL
Material
SEAT
Material
CHOICE OF SEATS
Material
BODY SEAL
Material
THRUST WASHER
Material
STEM PACKING
Material
T-CLAMP END
Hygienic Clamp End in accordance with US dimensions.
　
ISO 5211 DIRECT MOUNTING PAD
ISO 5211 integral mounting pad allows for direct actuator mounting. The mounting flange always follow ISO 5211 standard design and could be perfectly match with most actuators in the worldwide. Stable torque of valve always lead to the effective cost saving.
　
K-324TC
STANDARD COMPLIANCE
• 3-A


TEMPERATURE RANGE
• -4 to 356° F
• -20 to 180°C


PRESSURE RATING
• 800 PSI for DN15-DN50
• 600 PSI for DN65 and above


OPTIONS
• Cavity filler seat


CF3M MATERIAL
CF3M with Ferrite content less than 3% ; Sulfur constant between 0.005% and 0.017%
　

 Dimension + Weight
SIZE
NPS		 E
mm		 H
mm		 L
mm		 WEIGHT
kgs

SIZE
Inch		 E
Inch		 H
Inch		 L
Inch		 WEIGHT
lbs
