Model Name

Ball Valve

V-255TC

Tube BorePN100 / PN 63

1/2" ~2"    DN15~DN50
Bolt Inside



 Product Picture


 Features

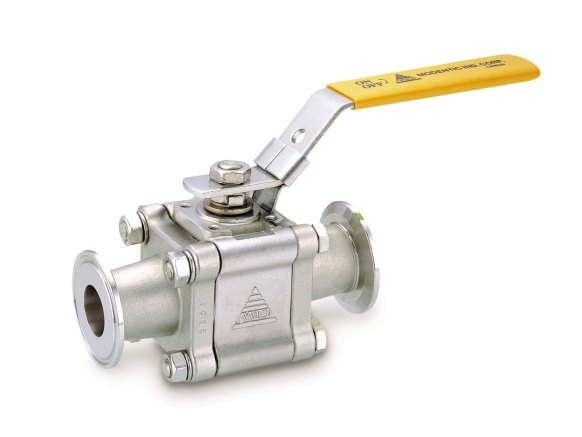

Three Pieces High Purity Ball Valves

1.TFM1600 SEAL KITS CONFIRM TO
   FDA / USP APPROVED
2. T-CLAMP END
3. TUBE BORE
4. TWO POSITION LOCKING DEVICE
5. BLOW-OUT-PROOF STEM
6. ISO 5211 MOUNTING PAD



 Notifications
Dimensions
Please refer to the Dimensions section.
　
Measurement Units
1. All lengths are measured in millimeter and inch.
2. All weights are measured in kilograms and pounds
　
About Product
1. Shipping and Tax are not included in pricing.
2. All products supplied by Modentic are under products liability insurance.
3. Valvebus.com reserves the rights to change any details without prior notice.
　
About VALVEBUS　
VALVEBUS.com reserves the right to change any details without prior notice.
　
Back to Top

 Specifications
MODEL
PRODUCT TYPE
OPERATION
PRESSURE
CONNECTION
PORT
MOUNTING
Mounting Flange
BODY
Material
CAP / BONNET
Material
STEM
Material
BALL
Material
SEAT
Material
CHOICE OF SEATS
Material
BODY SEAL
Material
THRUST WASHER
Material
STEM PACKING
Material
ISO 5211 MOUNTING PAD
Recognized industry standard for mounting pad design, enabling easy assembly of actuators on to valves.
　
T-CLAMP END
Hygienic Clamp End in accordance with US dimensions.
　
V-255TC
STANDARD COMPLIANCE
1. EN12516-1 / 2, B16.34 / BPE
2. 3A, ASME / BPE 2002 DT-10
3. Port polished per SV1


TEMPERATURE RANGE
-70 to 356° F
-57 to 180°C


PRESSURE RATING
100 BAR for DN15-DN25
63 BAR for DN32 and above


OPTIONS
1. Cavity filler seat
2. Inter finish polished to
    electropolished SV4
3. Anti-static grounding service
4. Purge port
5. Extension stem.
　

 Dimension + Weight
SIZE
NPS		 E
mm		 H
mm		 L
mm		 WEIGHT
kgs

SIZE
Inch		 E
Inch		 H
Inch		 L
Inch		 WEIGHT
lbs
