Model
Name
Ball Valve
MD-57
Full BorePN 16
1/2" ~6" DN15~DN150

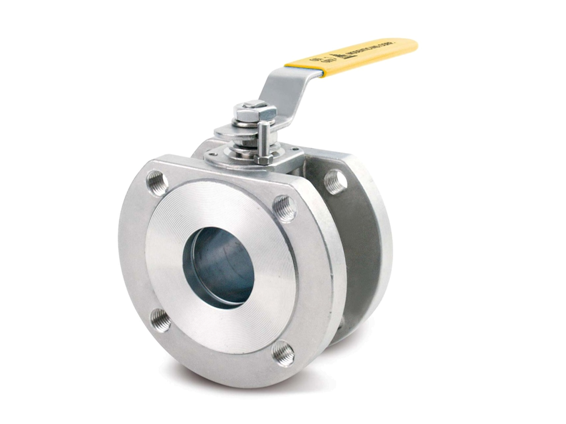

Product Picture
FeaturesOne Piece Flanged Ball Valves |
|---|
1. Blow-out proof stem |
Notifications| Dimensions |
| Please refer to the Dimensions section. |
 |
| Measurement Units |
| 1. All lengths are measured in millimeter and inch. 2. All weights are measured in kilograms and pounds |
| About Product |
| 1. Shipping and Tax are not included in pricing. 2. All products supplied by Modentic are under products liability insurance. 3. Valvebus.com reserves the rights to change any details without prior notice. |
| About VALVEBUS |
| VALVEBUS.com reserves the right to change any details without prior notice. |
| Back to Top |
 |
Specifications| MODEL | MD-57 |
| PRODUCT TYPE | One Piece Flanged Ball Valves |
| OPERATION | Handle |
| PRESSURE | PN 16 |
| CONNECTION | Flanged End |
| PORT | Full Bore |
| MOUNTING Mounting Flange | ISO 5211 Mounting Flange |
| BODY Material | 1.4408 / EN1503-1 |
| CAP / BONNET Material | 1.4408 / EN1503-1 |
| STEM Material | SS316 |
| BALL Material | ASTM A351 Gr.CF8M |
| SEAT Material | RTFE |
| CHOICE OF SEATS Material | PTFE RTFE (PTFE with 15% G.F.) Carbon filled PTFE Carbon filled PEEK PEEK PCTFE PTFE with 50% SS316 TFM |
| BODY SEAL Material | PTFE |
| THRUST WASHER Material | PTFE |
| STEM PACKING Material | PTFE |
| MD-57 |
| STANDARD COMPLIANCE • EN 12516-1, DIN 10213-4 • DIN 2501 PN16, EN 12266 TEMPERATURE RANGE • -4 to 365 °F • -20 to 180 °C OPTION • Carbon Steel & Super Alloy upon request |
| Flanged End |
| END CONNECTION STANDARD ANSI B16.5 / EN1092 VALVES LENGTH STANDARD ANSI B16.10 / DIN3202 F1 / F4 / F5 |
Dimension + Weight| SIZE NPS |
E mm |
H mm |
L mm |
WEIGHT kgs |
| DN15 | 116.0 | 70.0 | 35.0 | 1.06 |
| DN20 | 116.0 | 74.0 | 38.0 | 1.53 |
| DN25 | 165.0 | 75.0 | 44.0 | 1.89 |
| DN32 | 165.0 | 87.0 | 54.0 | 2.90 |
| DN40 | 193.0 | 90.0 | 62.0 | 3.50 |
| DN50 | 193.0 | 99.0 | 80.0 | 5.20 |
| DN65 | 235.0 | 141.0 | 101.0 | 6.04 |
| DN80 | 235.0 | 150.0 | 118.0 | 11.98 |
| DN100 | 266.0 | 172.0 | 150.0 | 20.43 |
| DN125 | 400.0 | 205.0 | 179.0 | 28.50 |
| DN150 | 600.0 | 220.0 | 202.0 | 38.80 |
| SIZE Inch |
E Inch |
H Inch |
L Inch |
WEIGHT lbs |
| 1/2" | 4.6 | 2.8 | 1.4 | 2.3 |
| 3/4" | 4.6 | 2.9 | 1.5 | 3.4 |
| 1" | 6.5 | 3.0 | 1.7 | 4.2 |
| 1-1/4" | 6.5 | 3.4 | 2.1 | 6.4 |
| 1-1/2" | 7.6 | 3.5 | 2.4 | 7.7 |
| 2" | 7.6 | 3.9 | 3.1 | 11.5 |
| 2-1/2" | 9.3 | 5.6 | 4.0 | 13.3 |
| 3" | 9.3 | 5.9 | 4.6 | 26.4 |
| 4" | 10.5 | 6.8 | 5.9 | 45.1 |
| 5" | 15.7 | 8.1 | 7.0 | 62.9 |
| 6" | 23.6 | 8.7 | 8.0 | 85.7 |
