Model
Name
Ball Valve
MD-52
Full BorePN 16
1/2" ~10" DN15~DN250

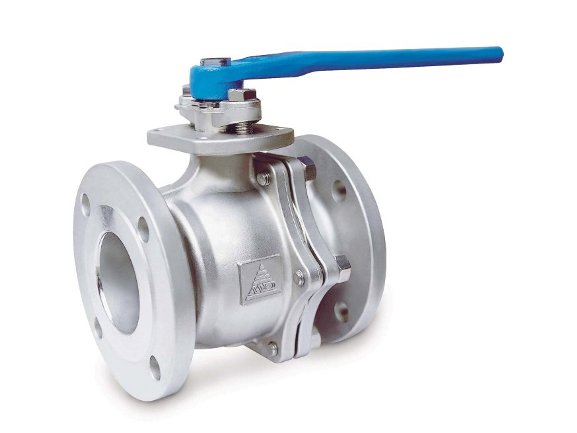

Product Picture
FeaturesTwo Pieces Flanged Ball Valves |
|---|
1. Blow-out proof stem |
Notifications| Dimensions |
| Please refer to the Dimensions section. |
 |
| Measurement Units |
| 1. All lengths are measured in millimeter and inch. 2. All weights are measured in kilograms and pounds |
| About Product |
| 1. Shipping and Tax are not included in pricing. 2. All products supplied by Modentic are under products liability insurance. 3. Valvebus.com reserves the rights to change any details without prior notice. |
| About VALVEBUS |
| VALVEBUS.com reserves the right to change any details without prior notice. |
| Back to Top |
 |
Specifications| MODEL | MD-52 |
| PRODUCT TYPE | Two Pieces Flanged Ball Valves |
| OPERATION | Handle |
| PRESSURE | PN 16 |
| CONNECTION | Flanged End |
| PORT | Full Bore |
| MOUNTING Mounting Flange | ISO 5211 Mounting Flange |
| BODY Material | 1.4408 / EN1503-1 |
| CAP / BONNET Material | 1.4408 / EN1503-1 |
| STEM Material | SS316 |
| BALL Material | ASTM A351 Gr.CF8M |
| SEAT Material | RTFE / PTFE with 15% G.F. |
| CHOICE OF SEATS Material | PTFE RTFE (PTFE with 15% G.F.) Carbon filled PTFE Carbon filled PEEK PEEK PCTFE PTFE with 50% SS316 TFM |
| BODY SEAL Material | PTFE |
| THRUST WASHER Material | PTFE |
| STEM PACKING Material | PTFE |
| MD-52 |
| FACE TO FACE ANSI B16.10 Class 150/300 DIN 3202 F4/F5 FLANGE DIMENSION ANSI B16.5 Class 150/300, 125-250 AARH, DIN 2501 PN16/PN40 Flanged Fitting TEMPERATURE RANGE -4 to 365° F -20 to 180°C OPTION Carbon Steel & Super Alloy upon request |
| Flanged End |
| END CONNECTION STANDARD ANSI B16.5 / EN1092 VALVES LENGTH STANDARD ANSI B16.10 / DIN3202 F1 / F4 / F5 |
Dimension + Weight| SIZE NPS |
E mm |
H mm |
L mm |
WEIGHT kgs |
| DN15 | 130.8 | 65.7 | 115.0 | 2.54 |
| DN20 | 130.8 | 68.2 | 120.0 | 3.55 |
| DN25 | 165.0 | 80.6 | 125.0 | 4.02 |
| DN32 | 165.0 | 86.5 | 130.0 | 5.72 |
| DN40 | 202.0 | 108.9 | 140.0 | 7.87 |
| DN50 | 202.0 | 116.5 | 150.0 | 11.05 |
| DN65 | 202.0 | 139.0 | 170.0 | 15.16 |
| DN80 | 328.5 | 169.4 | 180.0 | 20.06 |
| DN100 | 328.5 | 193.3 | 190.0 | 27.58 |
| DN150 | 752.5 | 256.0 | 350.0 | 71.21 |
| DN200 | 1016.0 | 325.4 | 400.0 | - |
| DN250 | 1016.0 | 391.2 | 450.0 | - |
| SIZE Inch |
E Inch |
H Inch |
L Inch |
WEIGHT lbs |
| 1/2" | 5.1 | 2.6 | 4.5 | - |
| 3/4" | 5.1 | 2.7 | 4.7 | - |
| 1" | 6.5 | 3.2 | 4.9 | - |
| 1-1/4" | 6.5 | 3.4 | 5.1 | - |
| 1-1/2" | 8.0 | 4.3 | 5.5 | - |
| 2" | 8.0 | 4.6 | 5.9 | 24.4 |
| 2-1/2" | 8.0 | 5.5 | 6.7 | 33.5 |
| 3" | 12.9 | 6.7 | 7.1 | 44.3 |
| 4" | 12.9 | 7.6 | 7.5 | 60.9 |
| 6" | 29.6 | 10.1 | 13.8 | 157.2 |
| 8" | 40.0 | 12.8 | 15.7 | - |
| 10" | 40.0 | 15.4 | 17.7 | - |
